Select Part Number to View & Order Online

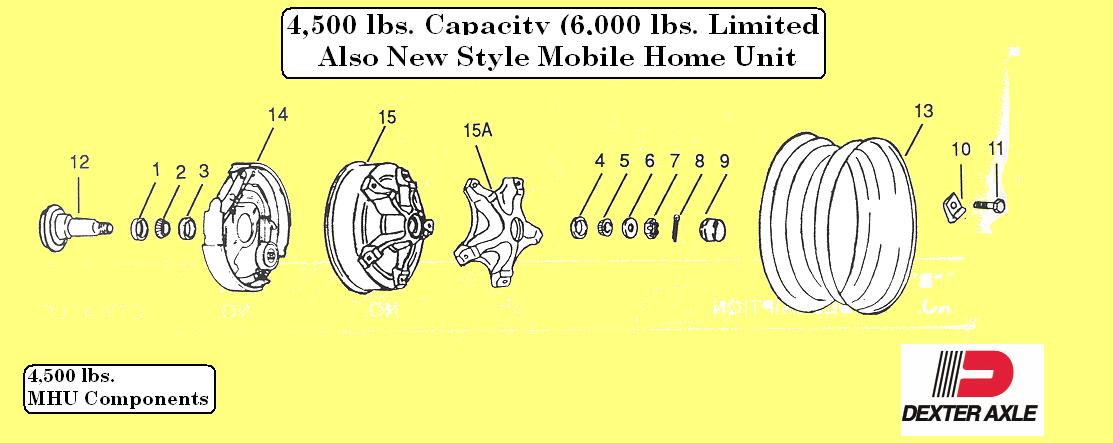

 Click Here To Enlarge

4,500 LBS Capacity (6,000 LBS Limited)

4,500 lbs.
MHU Components

Part # Description Item # Dexter # Ref #
27-353 MH Grease Seal 1 010-040-00 273875
27-324 Inner Bearing (L68149) 2 031-033-02 273715
27-325 Inner Race (L68111) 3 031-033-01 273720
27-329 Outer Race (LM67010) 4 031-032-01 273750
27-328 Outer Bearing (LM67048) 5 031-032-02 273740
27-058-3 Spindle Washer 6 005-027-00 271070
27-057 Spindle Nut 7 006-001-00 271000
27-027 Cotter Pin 8 019-002-00 270540
27-371 Grease Cap 9 021-001-00 274005
27-024 Rim Clamps (non-plated) 9 015-012-00 270490
27-024-1 Rim Clamps (plated) 10 015-002-00 270500
27-025 1/2" - 13 Wheel Bolts 11 007-036-00 270510
27-089-MHU Mobile Home Bearing Kit 13
27-554 MH Primary Shoe & Lining Not Available
  (6K Limited Use Mobile Home Only)
27-555 MH Secondary Shoe & Lining Not Available
  (6K Limited Use Mobile Home Only)
27-434 MH Magnet (6K Limited Use Mobile Home Only) n/s 042-070-00 274420
27-442 LH Complete Brake Assembly (4.5K Rating) 14 023-105-00 274470
27-443 RH Complete Brake Assembly (4.5K Rating) 14 023-106-00 274475
27-304-B Hub & Drum (includes races) 15 008-222-04 273445
 8-261-4

Idler Hub

   008-223-1
90-27-035 MH Top Return Spring n/s 046-082-00
27-519 Pal Nut n/s 046-030-00 275495
27-517 MH Magnet Clip n/s 046-003-00 275480
27-517-1 MHU Magnet Arm (LH or RH) n/s   275485



Note: 4,500 lbs. rating when purchased with a bolt-on brake (27-442 / 27-443).
Includes full 2 year warranty.

6,000 lbs. limited use rating when purchased with weld-on brake.
No warranty (mobile home use only)

12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-105) ...Free Delivery...Lower 48 States (SKU: 27-442)12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-105) ...Free Delivery...Lower 48 States (SKU: 27-442)
More info ►
 12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 6K (23-105-09) (SKU: 27-442-1)12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 6K (23-105-09) (SKU: 27-442-1)
More info ►
 12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 6K (23-105-09) (SKU: 23-105-09)12" x 2"--- DEXTER LH ELEC Complete Brake Assembly 6K (23-105-09) (SKU: 23-105-09)
More info ►
 12" x 2"--- DEXTER LH ELEC Complete Brake Assembly IMPORT (SKU: 27-442/BE12-70L)12" x 2"--- DEXTER LH ELEC Complete Brake Assembly IMPORT (SKU: 27-442/BE12-70L)
More info ►
12" x 2"---Dexter RH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-106) Free Delivery...Lower 48 States (SKU: 27-443)12" x 2"---Dexter RH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-106) Free Delivery...Lower 48 States (SKU: 27-443)
More info ►
 12" x 2"---Dexter RH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-106) Free Delivery...Lower 48 States (SKU: 27-443-ALB)12" x 2"---Dexter RH ELEC Complete Brake Assembly 4.5K, 5.2K, 6K (23-106) Free Delivery...Lower 48 States (SKU: 27-443-ALB)
More info ►
 12" x 2"---Dexter RH ELEC Complete Brake Assembly 6K (23-106-09) (SKU: 23-106-09)12" x 2"---Dexter RH ELEC Complete Brake Assembly 6K (23-106-09) (SKU: 23-106-09)
More info ►
 12" x 2"---Dexter RH ELEC Complete Brake Assembly 6K (23-106-09) (SKU: 27-443-1)12" x 2"---Dexter RH ELEC Complete Brake Assembly 6K (23-106-09) (SKU: 27-443-1)
More info ►
12" x 2"---Dexter RH ELEC Complete Brake Assembly IMPORT (SKU: 27-443/BE12-70R)12" x 2"---Dexter RH ELEC Complete Brake Assembly IMPORT (SKU: 27-443/BE12-70R)
More info ►
 12" x 2"---Mobile Home LH ELEC Complete Brake Assembly 4.5K (23-105) Free Delivery...Lower 48 States (SKU: 27-442-ALB-MHU)12" x 2"---Mobile Home LH ELEC Complete Brake Assembly 4.5K (23-105) Free Delivery...Lower 48 States (SKU: 27-442-ALB-MHU)
More info ►
 12" x 2"---Mobile Home LH ELEC Complete Brake Assembly IMPORT...Free Delivery...Lower 48 States (SKU: 27-442-BE12-70L-MHU)12" x 2"---Mobile Home LH ELEC Complete Brake Assembly IMPORT...Free Delivery...Lower 48 States (SKU: 27-442-BE12-70L-MHU)
More info ►
 12" x 2"---Mobile Home RH ELEC Complete Brake Assembly 4.5K (23-106) ...Free Delivery...Lower 48 States (SKU: 27-443-ALB-MHU)12" x 2"---Mobile Home RH ELEC Complete Brake Assembly 4.5K (23-106) ...Free Delivery...Lower 48 States (SKU: 27-443-ALB-MHU)
More info ►
12" x 2"---Mobile Home RH ELEC Complete Brake Assembly IMPORT...Free Delivery...Lower 48 States (SKU: 27-443-BE12-70R-MHU)12" x 2"---Mobile Home RH ELEC Complete Brake Assembly IMPORT...Free Delivery...Lower 48 States (SKU: 27-443-BE12-70R-MHU)
More info ►
 27-089-MHU Mobile Home Bearing Kit (SKU: 27-089-MHU-B)27-089-MHU Mobile Home Bearing Kit (SKU: 27-089-MHU-B)
More info ►
 27-089-MHU Mobile Home Bearing Kit (SKU: 27-089-MHU)27-089-MHU Mobile Home Bearing Kit (SKU: 27-089-MHU)
More info ►
 Anchor Post Clip 46-30 (SKU: 27-519)Anchor Post Clip 46-30 (SKU: 27-519)
More info ►
Cotter Pin 19-2 ( 165649 ) (SKU: 27-027)Cotter Pin 19-2 ( 165649 ) (SKU: 27-027)
More info ►
 Grease Cap 21-1 45896 (SKU: 27-371)Grease Cap 21-1 45896 (SKU: 27-371)
More info ►
 Grease Cap 21-1 45896 (SKU: 7700027)Grease Cap 21-1 45896 (SKU: 7700027)
More info ►
 L68111 Inner Bearing Cup (SKU: L68111)L68111 Inner Bearing Cup (SKU: L68111)
More info ►
L68111 Inner Bearing Cup (SKU: 27-325)L68111 Inner Bearing Cup (SKU: 27-325)
More info ►
 LM67010 Outer Race (SKU: 27-329)LM67010 Outer Race (SKU: 27-329)
More info ►
 LM67048 Outer Bearing (SKU: 27-328)LM67048 Outer Bearing (SKU: 27-328)
More info ►
 MH Brake Hub 8-222-4 (SKU: 27-304-B)MH Brake Hub 8-222-4 (SKU: 27-304-B)
More info ►
MH Grease Seal 10-4 (SKU: 27-353)MH Grease Seal 10-4 (SKU: 27-353)
More info ►
 MH Grease Seal 10-40 (SKU: 10-40*)MH Grease Seal 10-40 (SKU: 10-40*)
More info ►
 MH Magnet Clip 46-3 (SKU: 27-517)
More info ►
 Mobile Home Bearing Kit (4.5K) With Grease Cap & Cones (Races) (SKU: 55-27040-WC)Mobile Home Bearing Kit (4.5K) With Grease Cap & Cones (Races) (SKU: 55-27040-WC)
More info ►
Mobile Home Bolt & Clamp Kit (SKU: 55-27165/27170)Mobile Home Bolt & Clamp Kit (SKU: 55-27165/27170)
More info ►
 Rim Clamp 15-12 (Non Plated) 1/2" BOLT HOLE (SKU: 27-024)Rim Clamp 15-12 (Non Plated) 1/2" BOLT HOLE (SKU: 27-024)
More info ►
 Rim Clamp 15-12 (Plated ) 5 PC Set (SKU: 27-024-1)Rim Clamp 15-12 (Plated ) 5 PC Set (SKU: 27-024-1)
More info ►
 Rim Clamp 15-12 (Plated ) 5 PC Set (SKU: 7700058)Rim Clamp 15-12 (Plated ) 5 PC Set (SKU: 7700058)
More info ►
SMALL "S"HEAD CAM (DIRECT ORDER) (SKU: 34-189-09 RH)
More info ►
 SMALL "S"HEAD CAM (DIRECT ORDER) (SKU: 34-188-09 LH)
More info ►
 Spindle Nut EZ-Only 165686 (SKU: 27-057)Spindle Nut EZ-Only 165686 (SKU: 27-057)
More info ►
 Wheel Bolt 7-36 5 PC Set Only (SKU: 27-025)Wheel Bolt 7-36 5 PC Set Only (SKU: 27-025)
More info ►
