Air-Hydraulic Kit for DEXTER 3.5K – 15K DRUM TH1002

AIR / HYDRAULIC TRAILER KITS – NON ABS

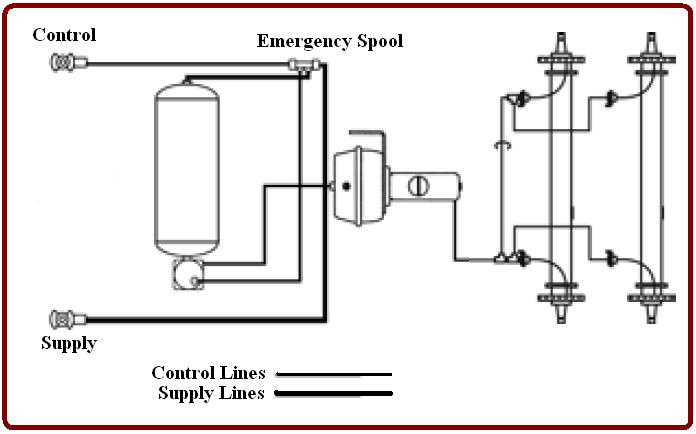

The TH-1002 air / hydraulic trailer kits are designed to meet the fluid displacement and pressure requirements of Dexter 8-12K. Kits are furnished complete with control valves, air tank, air / hydraulic actuator, air hose and hydraulic brake line kit.

Features

• 8500 Series Air/Hydraulic Trailer Kit includes:

  1–1000 PSI Booster Pump
  1– Air tank 2,850 cubic inch
  2– Vibration rubber mounts for air tank
  4– Tank Mounting bolts w/hardware
  1– Air tank drainage cock
  1– Red Emergency Air Glade hand
  1– Blue Service Air Glade hand
  1– Emergency Spool Valve for non-abs trailers
  1– Relay valve for non-abs trailers
  3– Brass 90′ 9/16″ threaded to air line elbows adapter
  6– Brass Straight 9/16″ thread to air line adapter
  4– 9/16″ brass plugs
  1– 1″ brass plug
  1– 1″ brass union
  2– 3/4″ to 1/2″ brass bolt on adapter
  8– Zinced hose clamps
  8– Black zip ties
  Misc self tapers
  1– Tandem Hydraulic line Kit
  • 3 – 3/16″ Brass Service Tees
  • 1 – 3/16″ Brass Hydraulic Union
  • 4 – Zinced Hose Brackets
  • 4 – Zinced Hose Clips
  • 4 – 90 Degree 18″ long Flex Hoses
  • 2 – Line Tie Straps
  • 6 – Line Retaining Clips
  • 6 – Line Retaining Clip Screws
  • 2 – 3/16″ x 180″ Steel Lines
  • 2 – 3/16″ x 51″Steel Lines
  • 1 – 3/16″ x 72″Steel Line
  • 4 – 7/16″ to 3/16″ adapter (used only some 10-15k disc brake calipers)
