#11 Torflex Lift Kit K71-724-02
Tandem #11 Torflex Lift Kit (K71-724-02)
The lift kit will raise the units frame height 2 7/8".
This kit will only work on a #11 Torflex axle that has been mounted using the side mounting axle system option.
Will not work on top mounted Torflex axles.
The kit has enough parts to do a Tandem axle unit.To determine the bracket hole dimensions that the kit has click here.
Caution: This lift kit can't be used with 3" tall brackets.

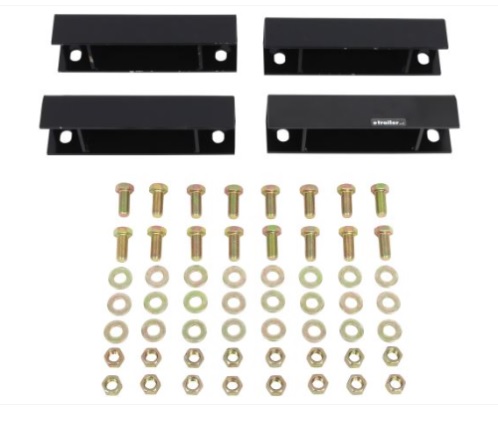

(4) 003-400-02 Frame Spacer #11 (2 7/8" Tall)
(24) 005-111-00 Washer
(16) 006-126-00 5/8"-18 Hex Lock Nut
(16) 007-177-00 5/8"-18 Screw Hex Cap Bolt 1.50" Long
The lift kit will raise the units frame height 2 7/8".
This kit will only work on a #11 Torflex axle that has been mounted using the side mounting axle system option.
Will not work on top mounted Torflex axles.
The kit has enough parts to do a Tandem axle unit.To determine the bracket hole dimensions that the kit has click here.
Caution: This lift kit can't be used with 3" tall brackets.
(4) 003-400-02 Frame Spacer #11 (2 7/8" Tall)
(24) 005-111-00 Washer
(16) 006-126-00 5/8"-18 Hex Lock Nut
(16) 007-177-00 5/8"-18 Screw Hex Cap Bolt 1.50" Long
 |
