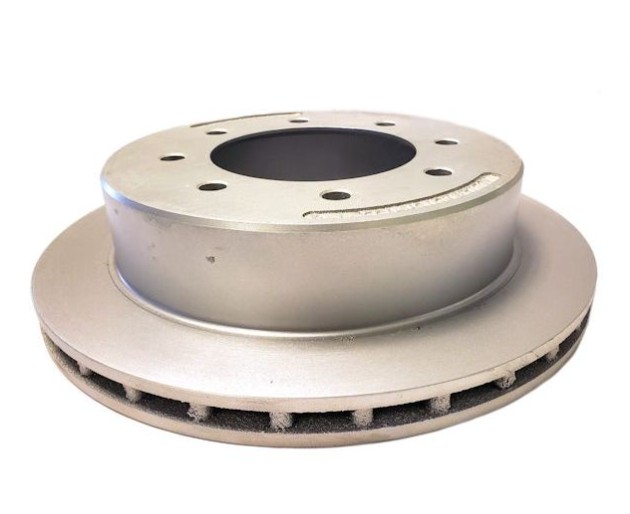

KODIAK 13" Vented 'Slip On' Style Rotor, Gal-Dex #070-RTR-133-7-8-D

Home ► KODIAK 13" Vented 'Slip On' Style Rotor, Gal-Dex #070-RTR-133-7-8-D

Click to enlarge image(s)

KODIAK 13" GAL-DEX COATED Vented 'Slip On' style rotors. GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust to begin forming in excess of 400 - 500 hours).
Hub not included.

KODIAK 13" GAL-DEX COATED Vented 'Slip On' style rotors.
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust to begin forming in excess of 400 - 500 hours). The 'Slip On' style Rotor is cast as a single unit and slips onto a standard 8 on 6.5" hub. Having the 'Slip On' style disc brake assembly allows you to replace a rotor with out having to remove the hub or bearings.

Note: Slip on Rotors will not work with caliper mounting bracket that is designed for use with integral rotor/hubs.

ROTOR DIAMETER: 13" VENTED
REPLACES DRUM DIAMETER: 13"
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6.5" (15" & Larger Wheels)
AXLE RATING: 7,000 lbs.
WARRANTY: 3 Year
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
