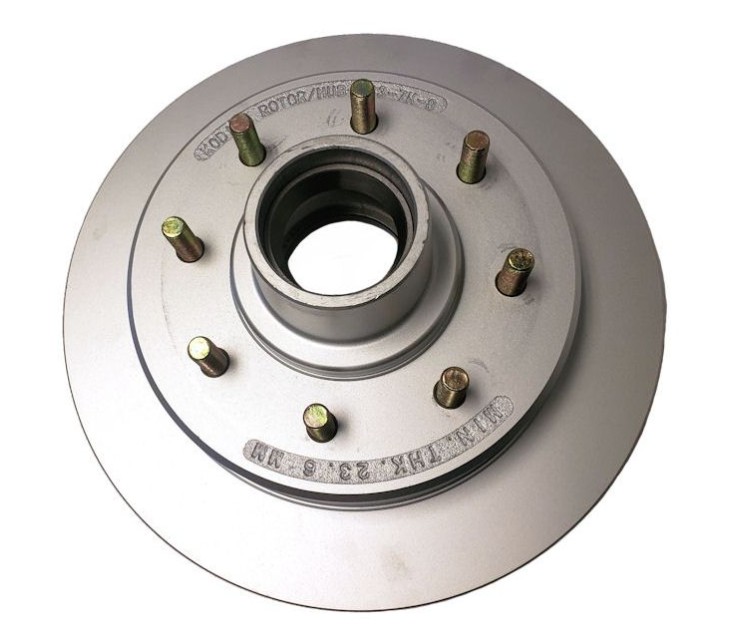

KODIAK 13-3/16" GAL-DEX COATED Vented Integral Rotor/Hub trailer disc brake assembly.
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400 and 600 hours). The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Includes inner and outer races which are already installed. (Bearings, seal, lug nuts and dust cap sold separately)

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures.

ROTOR DIAMETER: 13-3/16" VENTED
RACE NUMBERS: 25520-14276
BEARING SIZE: 1-3/4"(25580) x 1-1/4"(14125A) (Not included)
GREASE SEAL OD: 3.38" (Not included)
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6-1/2" (15" & Larger Wheels)
AXLE RATING: 7,000 lbs
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Cross Ref#: R/HUB-133-7-8-DAC, R/H-133-7-8-D-S
