Click to enlarge image(s)
|
Trailer Safe --Trailer Smart--Trailer With A DEXTER PART
Details
| Bolt Pattern |
8 on 6.5" |
| Axle Capacity Rating Per Pair |
7K |
| Fits Spindle |
#42 |
| Stud Size |
1/2" |
| Included with this item |
Hub, Bearings, Seal, Grease Cap, Lug Nuts |
| Finish |
Painted |
| Inner Bearing Part Number |
25580 |
| Lubrication |
Grease |
| Outer Bearing Part Number |
14125A |
| Seal Inner Diameter |
2.250" |
| Thread Count |
20 |
| Package Type |
Retail Packaged |

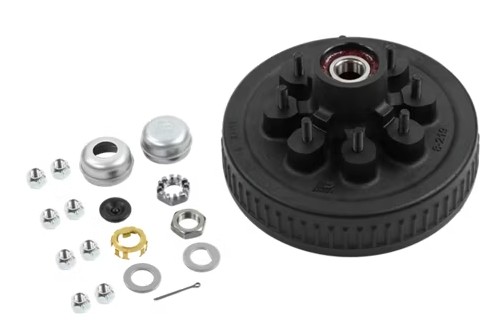

Kit Contains:
| DX PART NO |
|
QUANTITY |
DESCRIPTION |
| 008-219-04 |
|
1 |
Hub & Drum, 7K, 1/2" |
| 031-030-02 |
|
1 |
Bearing Cone (25580) |
| 031-017-02 |
|
1 |
Bearing Cone (14125A) |
| 010-036-00 |
|
1 |
Seal, 2.25" |
| 006-080-00 |
|
1 |
Nut, Cone 60-deg |
| 085-001-00 |
|
1 |
Rubber Plug |
| 006-190-00 |
|
1 |
Nut, Retainer |
| 006-191-00 |
|
1 |
Nut, Hex |
| 006-176-00 |
|
1 |
Nut, Slotted |
| 005-057-00 |
|
1 |
Washer, "D" |
| 005-223-00 |
|
1 |
Washer |
| 019-002-00 |
|
1 |
Cotter Pin |
| 059-831-00 |
|
1 |
Instruction Sheet |
| 021-039-00 |
|
1 |
Grease Cap |
| 021-043-01 |
|
1 |
Grease Cap |
