| Slipper Springs, U-Bolts, & Tie Plates |
| |
|
| |
| |
| Springs |
|
Spring Capacity times 2 = Axle Capacity
Example:
2500 lb Spring X 2 Springs = Set FOR 5000 lb Axle Capacity
If You Have A Broken Spring It Is recommended That You Replace Springs In Pairs !!!!!!
|
| |
|
Dimensions |
| Part # |
Description |
Item # |
DX # |
Capacity |
Ref # |
G |
C |
| 27-206 |
2 Leaf Slipper |
2 |
72-2 |
1,000 |
272250 |
24” |
1 3/4” |
| 27-210 |
4 Leaf Slipper |
2 |
72-30 |
2,000 |
272290 |
25” |
2” |
| 27-211 |
5 Leaf Slipper |
2 |
72-32 |
3,500 |
272310 |
25” |
2” |
| 27-211-1 |
6 Leaf Slipper |
2 |
HW-5116 |
3,750 |
272320 |
26" |
2" |
| 27-212 |
7 Leaf Slipper (8K) |
2 |
72-151-1 |
4,000 |
272330 |
25” |
2” |
| 27-213-1 |
6 Leaf Slipper (9K) |
2 |
72-10-2 |
4,500 |
272350 |
30” |
2” |
| 27-214-2 |
5 Leaf Slipper
(10K GD) |
2 |
72-21 |
5,000 |
272370 |
30” |
2 1/2” |
| 27-214-3 |
5 Leaf Slipper
(10K GD) - NEW |
2 |
72-77 |
5,000 |
272371 |
30” |
2 1/2” |
| 27-214-1 |
5 Leaf Slipper
(10K HD) |
2 |
72-43-1 |
5,000 |
272360 |
30” |
3” |
| 27-215-1 |
6 Leaf Slipper (12K) |
2 |
72-44-1 |
6,000 |
272390 |
30” |
3” |
| 27-216-1 |
7 Leaf Slipper (15K) |
2 |
72-45-1 |
7,500 |
272420 |
30” |
3” |
| 27-217-A |
6 Leaf Slipper |
2 |
E-5115 |
3,750 |
272450 |
29" |
2" |
|
| |
| |
| U-Bolts |
| |
| |
|
Dimensions |
| Part # |
Description |
Item # |
DX # |
Capacity |
Ref # |
B |
A |
| 27-230 |
2,000 lbs. U-Bolt |
1 |
11-54 |
n/a |
272700 |
3/8” |
1 3/4” |
| 27-232 |
5,200 lbs. U-Bolt |
1 |
11-17 |
n/a |
272770 |
1/2” |
3” |
| 27-233 |
5,200 - 7,000 lbs. U-Bolt |
1 |
11-18 |
n/a |
272800 |
1/2” |
3” |
| 27-234 |
8,000 lbs. U-Bolt |
1 |
11-65 |
n/a |
272820 |
9/16” |
3 1/2” |
| 27-235 |
9,000 lbs. U-Bolt |
1 |
11-64 |
n/a |
272840 |
5/8” |
4” |
| 27-237-1 |
10,000 lbs. U-Bolt |
1 |
11-77 |
n/a |
272870 |
5/8” |
5” |
| 27-237 |
12,000-15,000 lbs.
U-Bolt |
1 |
11-70 |
n/a |
272860 |
3/4” |
5” |
|
| |
| |
| U-Bolt Nuts |
| |
| |
|
Dimensions |
| Part # |
Description |
Item # |
DX # |
Capacity |
Ref # |
E |
|
| 27-240 |
2,000 lbs. Nut |
4 |
6-67 |
n/a |
272970 |
3/8” |
|
| 27-241 |
5,200-7,000 lbs. Nut |
4 |
6-26 |
n/a |
272990 |
1/2” |
|
| 27-242 |
8,000 lbs. Nut |
4 |
6-7 |
n/a |
273000 |
9/16” |
|
| 27-243 |
9,000-10,000 lbs. Nut |
4 |
6-38 |
n/a |
273010 |
5/8” |
|
| 27-244 |
12,000-15,000 lbs. Nut |
4 |
6-113 |
n/a |
273020 |
3/4" |
|
|
| |
| |
| Tie Plates |
| |
| |
|
Dimensions |
| Part # |
Description |
Item # |
DX # |
Capacity |
Ref # |
E |
F |
| 27-220 |
2,000 lbs. Tie Plate |
3 |
12-40 |
n/a |
272520 |
1 3/4” |
1 3/4” |
| 27-222-1 |
3,500 lbs. Tie Plate |
3 |
12-4 |
n/a |
272570 |
2 3/8” |
2” |
| 27-224 |
5,200-7,000 lbs
Tie Plate |
3 |
12-2 |
n/a |
272590 |
3” |
2” |
| 27-225 |
8,000 lbs. Tie Plate |
3 |
12-37 |
n/a |
272600 |
3 1/2” |
2” |
| 27-226 |
9,000 lbs. Tie Plate |
3 |
12-42 |
n/a |
272620 |
4” |
2” |
| 27-229 |
10,000 lbs. GD Tie Plate |
3 |
12-49 |
n/a |
272670 |
5” |
2 1/2” |
| 27-229-1 |
10,000 lbs. HD Tie Plate |
3 |
12-53 |
n/a |
272680 |
5” |
3” |
| 27-228 |
12,000-15,000 Lbs
Tie Plate |
3 |
12-46 |
n/a |
272660 |
5” |
3” |
|

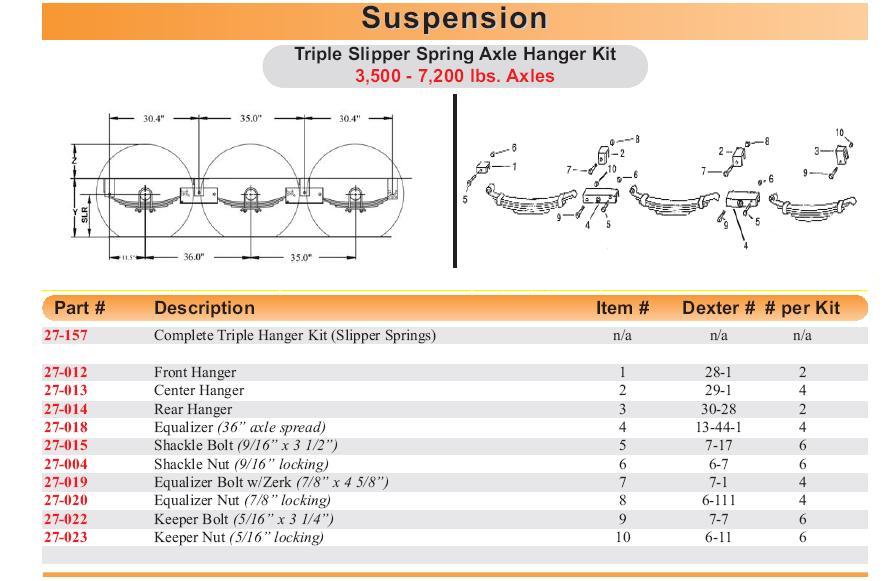

| Part # |
Description |
Item # |
Dexter # |
No. Per Kit |
| 27-157 |
Complete Triple Hanger Kit (Slipper Springs) |
|
|
|
| 27-012 |
Front Hanger |
1 |
28-1 |
2 |
| 27-013 |
Center Hanger |
2 |
29-1 |
4 |
| 27-014 |
Rear Hanger |
3 |
30-28 |
2 |
| 27-018 |
Equalizer (36” axle spread) |
4 |
13-44-1 |
4 |
| 27-015 |
Shackle Bolt (9/16” x 3 1/2”) |
5 |
7-17 |
6 |
| 27-004 |
Shackle Nut (9/16” locking) |
6 |
6-7 |
6 |
| 27-019 |
Equalizer Bolt w/Zerk (7/8” x 4 5/8”) |
7 |
7-1 |
4 |
| 27-020 |
Equalizer Nut (7/8” locking) |
8 |
6-111 |
4 |
| 27-022 |
Keeper Bolt (5/16” x 3 1/4”) |
9 |
7-7 |
6 |
| 27-023 |
Keeper Nut (5/16” locking) |
10 |
6-11 |
6 |
| Part # |
Description |
|
|
|
|
| |
|
|
|
|
|
| |
Hanger Kit Part No. |
APTT6SE |
H302* |
AP302* |
AP316* |
| |
Hangers |
|
|
|
|
| 721584 |
FRONT HANGER, 3 3/4” TALL |
2 |
|
|
|
| 721585 |
REAR HANGER, 5 1/16” TALL |
4 |
|
|
|
| 721586 |
CENTER HANGER, 3 3/8” TALL |
2 |
|
|
|
| 28-1 |
FRONT HANGER, 4 1/4” TALL |
|
2 |
|
|
| 29-1 |
CENTER HANGER, 3 1/2” TALL |
|
4 |
|
|
| 30-28 |
REAR HANGER, 5 1/4” TALL |
|
2 |
|
|
| |
|
|
|
|
|
| |
EQUALIZERS |
|
|
|
|
| E5541 |
12” OAL |
2 |
|
|
|
| 13-44 |
|
|
|
4 |
|
| |
|
|
|
|
|
| 13-44 |
“SWAN-SHAPED”, 33” A/C |
|
|
|
4 |
| |
WHEN USED W/3T3 SPRINGS |
|
|
|
|
| |
BOLTS & NUTS |
|
|
6 |
6 |
| 40366 |
SPRING KEEPER BOLT, 5/16” X 3 1/4” |
|
|
6 |
6 |
| 40340 |
5/16” HEX LOCK NUT |
|
|
|
|
| 91635B |
SHACKLE BOLT, 9/16” X 3 1/2” |
12 |
|
6 |
6 |
| 916DLN |
9/16” HEX LOCK NUT 12 |
12 |
|
6 |
6 |
| 7-1-1 |
WET EQUALIZER BOLT, 7/8” X 4 1/2” |
|
|
4 |
4 |
| 7845B |
EQUALIZER BOLT, 7/8” X 4 11/16” |
4 |
|
|
|
| 78CN |
7/8” CASTLE NUT FOR 7845B |
4 |
|
|
|
| 6-111 7 |
/8” HEX LOCK NUT FOR 7-1-1 |
|
|
4 |
4 |
| 165649 |
COTTER PIN, 2 1/4” FOR 7845B |
4 |
|
|
|
2' Tandem Hanger Kit---- Spring Hanger Kit 7000# axle Slipper Springs
 |
|
Click to enlarge image(s)
|
2' Tandem Hanger Kit---- Spring Hanger Kit 7000# axle Slipper Springs
Text
SLIPPER SPRING & U-BOLT KITS
|
|
|
